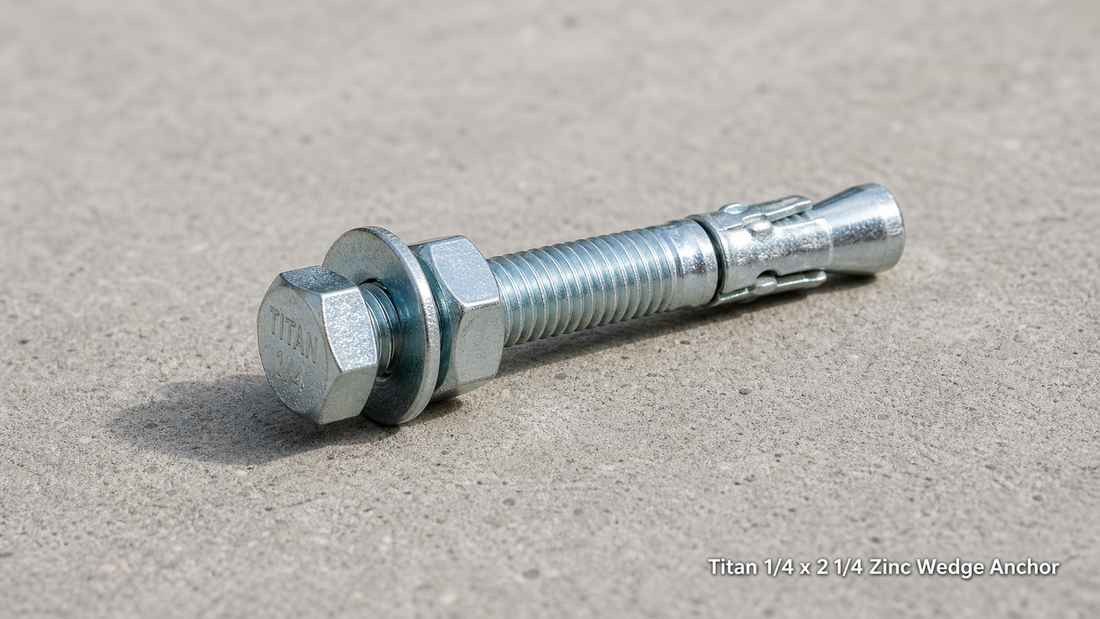

The Titan 1/4" x 2 1/4" zinc plated wedge anchor is a compact, reliable concrete fastener designed for light to medium duty applications, delivering dependable holding strength in solid concrete and fast one step installation for contractors and DIYers alike.
Why choose a 1/4" wedge anchors
- Ideal for fixtures where space or edge distance limits larger anchors such as signage, light shelving, or small handrails.
- Zinc finish provides corrosion resistance for indoor and covered outdoor uses.
- Simple installation process reduces labor time compared with epoxied anchors.
How it performs quick specs
- Diameter 1/4", Length 2 1/4", Minimum embedment 1 1/8".
- Recommended drill bit 1/4" carbide tipped bit; torque around 5 to 10 ft lbs for best holding values in typical 2000 PSI concrete.
Installation step by step for reliable results
- Mark and drill: center punch, then drill to the anchor’s embedment depth plus 1/2" to accommodate dust.
- Clean the hole: brush or blow out all concrete dust for maximum grip.
- Position and set: place the washer and nut on the anchor, insert through the fixture into the hole, and hammer until flush.
- Torque to spec: tighten the nut to the recommended torque (finger tight plus 3 to 4 turns or 5 to 10 ft lbs).
Common applications and examples
- Mounting light duty shelving and brackets in garages and workshops.
- Securing sign brackets, cable conduits, and small exterior fixtures.
- Fastening base plates for guardrails or temporary scaffolding where loads are moderate.
Titan Anchors 1/4" wedge versus Titan Anchors 1/2" x 4 1/2" screw anchor
